Led Post Top Lantern TP890

Outdoor Landscape 60w Outdoor Landscape Led Garden Light For Post Lamp

Feature:

• Traditional appearance structure, change to LED light source, which makes product more classic
• Set screw fixed installation, more solid and reliable
• Power supply and light source separated design make the product more convenient to install
• Power supply is separable, easy to change
• Beautiful appearance, use Philips 5050
• Using SOSEN driver
• IP65

Application:

Street, road lighting, walkway, park, courtyard lighting.

Datasheet:

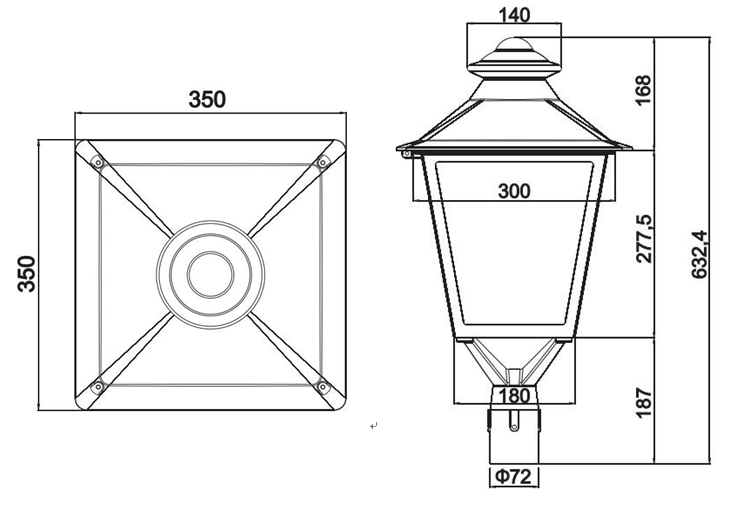

Product size & Photometric:

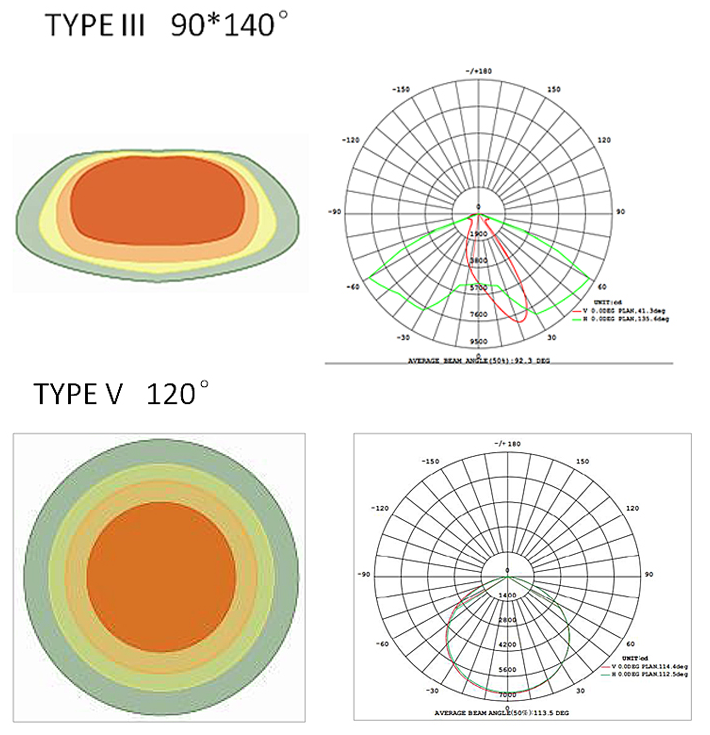

Optical&Photometric Data

Installation caution:

• Make sure the power has been turned off before maintenance.
• Clean the lens cover regularly to maintain high transmission of light.
• Clean up the dust from the reflector and heat sink regularly to keep sound heat dispersion.
• Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
• When install or replace power supply, directly open the back cover with a screwdriver, then remove the power supply. There are three-core cable of AC power, red corresponds to the power of  “L”, blue to “N”, and green or yellow to “G ”.
• Improvement and modification to fitting construction is prohibited. Product fault resulted from disassembling, remodeling or incorrect construction are not in the warranty.
