LED路灯

80w光电可调臂式LED路灯

5年质保,透镜选择type i/ii/iii/iv/v

产品产地:Guangdong

品牌:Goode Lighting

货号:GD-2018

发货港口:Shenzhen

颜色:Grey

交付周期:10

付款条款:TT/LC/PAYPAL/WESTERN UNION

询问详情

详情

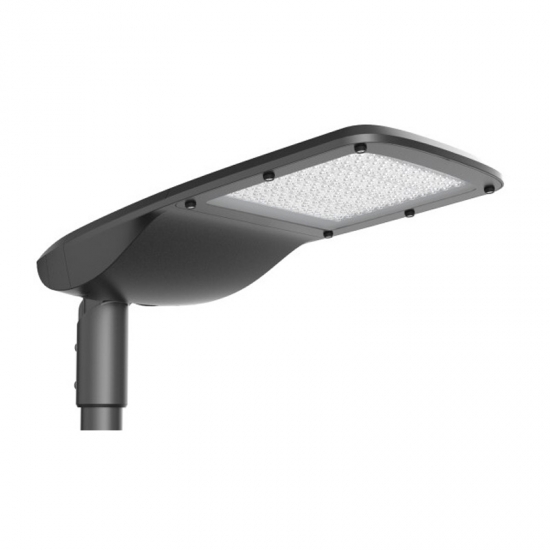

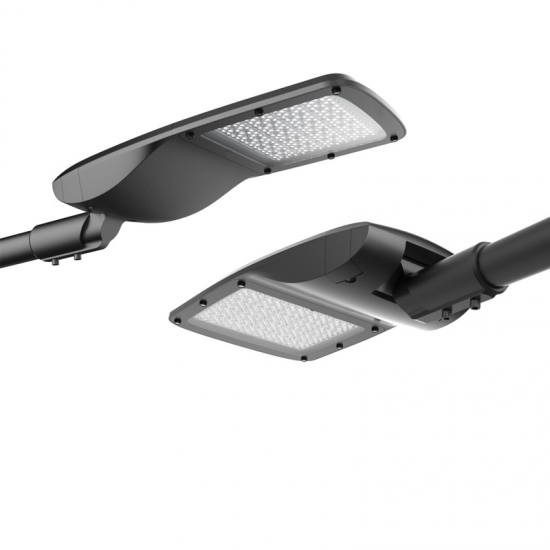

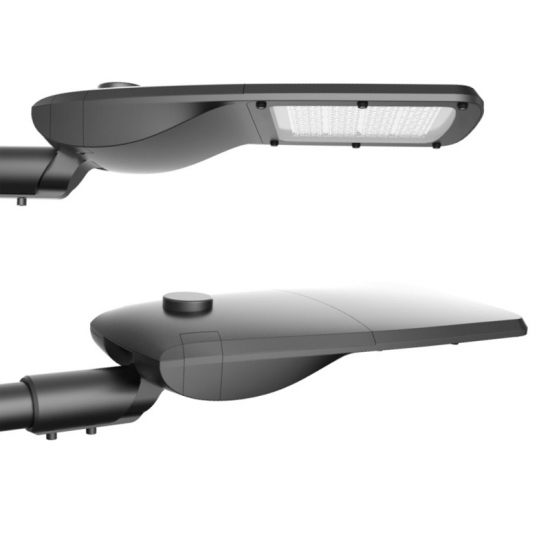

80w Arm Adjust Led Street Light Photocell

Sales Point:

• Welding reflow technology to make sure really low heat resistance and low lighting depreciation;

• Material: ADC12

• Luminaire tilt adjustment side entry: +/-15°

• Luminaire tilt adjustment post top: +/-15°

• CCT: 3000K, 4000K, 5000k, 6000k

• Warranty: 5 years

Optional accessories:

1. PhotoCell: Smart Controller for different height.

2. SPD: It can afford Higher voltage.

3. Dimming function

Datasheet:

Model	Product Size	Led Lighting source	Installation dia.	Driver	Input Voltage	Output power	LED pcs	LM/W	Whole lamp Lm
BML-2018C	633X281X149MM	CREE XTE	60mm	MEANWELL ELG-75	108-305V	60W	36	110LM / W	6600LM
BML-2018C	633X281X149MM	CREE XTE	60mm	MEANWELL ELG-100	108-305V	100W	56	110LM / W	11000LM
BML-2018B	740X344X149MM	CREE XTE	60mm	MEANWELL ELG-150	108-305V	120w	64	110LM / W	13200LM
BML-2018B	740X344X149MM	CREE XTE	60mm	MEANWELL ELG-150	108-305V	150W	64	110LM / W	16500LM
BML-2018B	740X344X149MM	CREE XTE	60mm	MEANWELL ELG-240	108-305V	200W	108	110LM / W	22000LM
BML-2018A	833X373X149MM	CREE XTE	60mm	MEANWELL ELG-240	108-305V	250W	140	110LM / W	27500LM
BML-2018A	833X373X149MM	CREE XTE	60mm	MEANWELL	108-305V	300W	160	110LM / W	33000LM

Led Lighting Source: Cree-Xlamp XT-E

Features:

Max. Efficacy at binning conditions 178lm/w
Max. Light Output 629lm
Max. Power: 5W
Max. Driving Cuurent up to 1500mA
Typical Forward Voltage 2.85V@350mA
Binning and characterization in Tj=85
Size: 3.45*3.45mm

Driver Feature: Meanwell ELG Series

· Constant Voltage + Constant Current mode output
· Metal housing design with functional Ground
· Built-in active PFC function
· Class 2 power unit
· No load / Standby power consumption <0.5W
· IP67 / IP65 rating for indoor or outdoor installations
· Function options: output adjustable via potentiometer; 3 in 1 dimming (d im-to-off); Smart timer dimming; DALI
· Typical lifetime>50000 hours
· 5 years warranty
